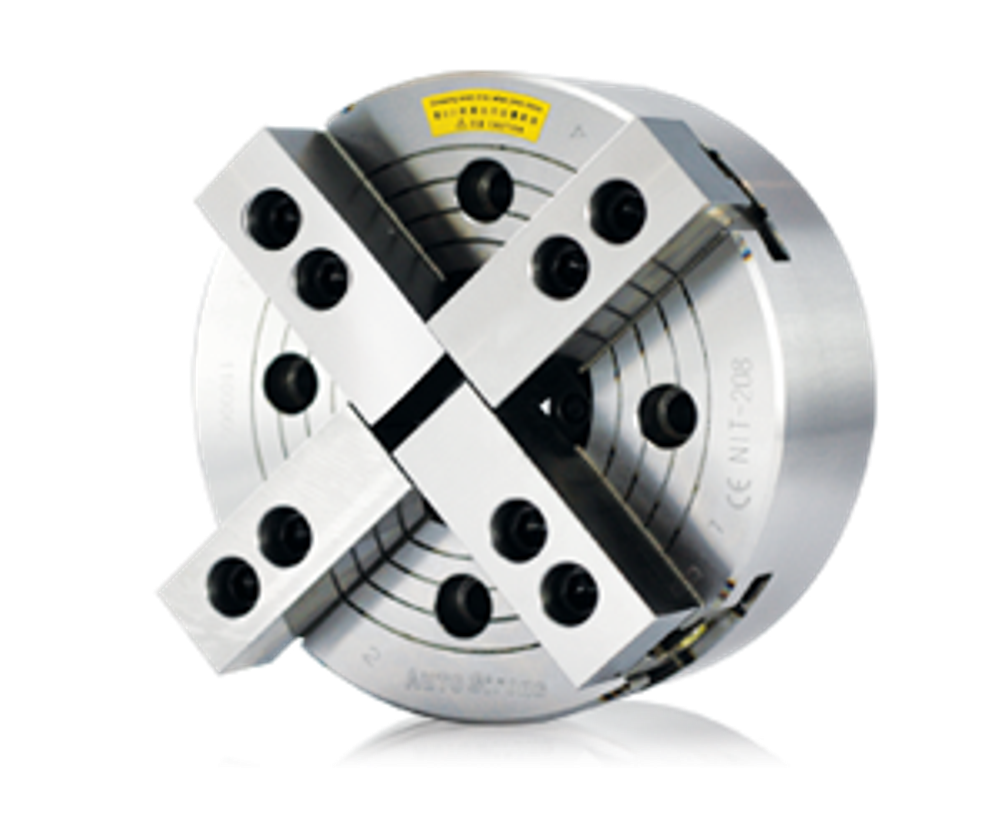

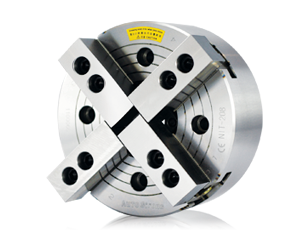

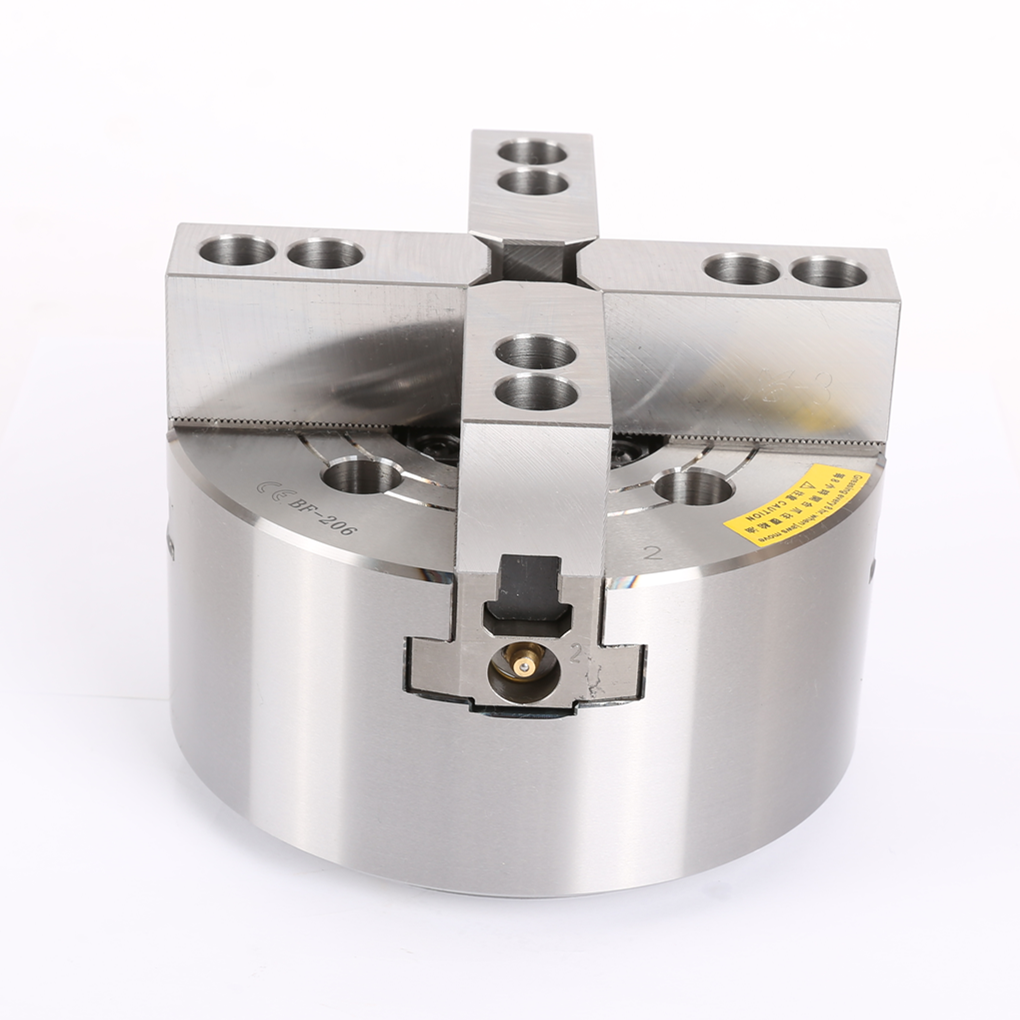

BF-208A5 Ф 210MM. Патрон токарный 4-х. кулачковый NTH c переходным фланцем-адаптером с механическим приводом кулачков.

Spec
Model

Plunger stroke
mm

Jaw stroke Dia.
mm

Max chucking Dia.
mm

Min chucking Dia.
mm

Max.D.B.Pull

kgf

BF-206 A5

12

5.5

169

15

2700

BF-208 A5

16

7.4

210

13

4430

BF-208 A6

16

7.4

210

13

4430

BF-210 A6

19

8.8

254

31

5440

BF-210 A8

19

8.8

254

31

5440

BF-212 A8

23

10.6

304

34

7000

BF-215 A11

23

10.6

381

50

9000

BF-218 A11

23

10.6

450

50

7240

BF-224 A20

26

12

610

150

9177

Spec
Model

Max clamping force
kgf

Max RPM

I
kg*m2

Weight
kg

Weight(Ad.)
kg

Matched cylinders

BF-206 A5

7000

6000

0.06

11.5

13.3

H-1246/HK-1246

BF-208 A5

10900

5000

0.19

23.5

25.4

H-1552/HK-1552

BF-208 A6

10900

5000

0.19

23.5

24.3

H-1552/HK-1552

BF-210 A6

14100

4200

0.34

36.3

41

H-1875/HK-1875

BF-210 A8

14100

4200

0.34

36.3

39.3

H-1875/HK-1875

BF-212 A8

18300

3300

0.79

62

65.7

H-2091/HK-2091

BF-215 A11

22900

2500

2.42

123.7

130.7

H-2511/HK-2511

BF-218 A11

18355

1500

3.798

140

151

H-2511/HK-2511

BF-224 A20

23861

1000

15.2

284

299

ML3320

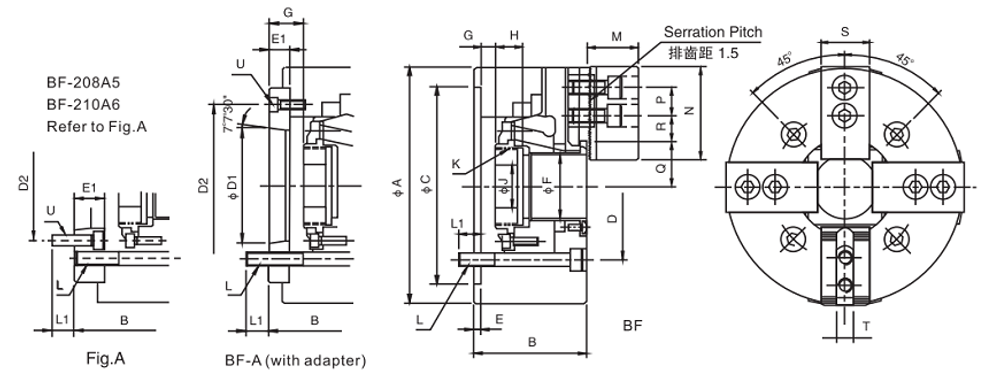

Spec
Model

A

B

B (Ad.)

C(H6)

D

D1

D2

E

E1

F

Gmax

Gmax(Ad.)

Gmin

Gmin(Ad.)

H

J

BF-206 A5

169

81

91

140

104.8

82.56

116

5

15

45

11

26

-1

14

19

20

BF-208 A5

210

91

109

170

133.4

82.56

104.8

5

23

52

14.5

37.5

-1.5

21.5

20.5

30

BF-208 A6

210

91

103

170

133.4

106.38

150

5

17

52

14.5

31.5

-1.5

15.5

20.5

30

BF-210 A6

254

100

120

220

171.5

106.38

133.4

5

25

75

8.5

33.5

-10.5

14.5

25

45

BF-210 A8

254

100

113

220

171.5

139.72

190

5

18

75

8.5

26.5

-10.5

7.5

25

452046
